Product Description

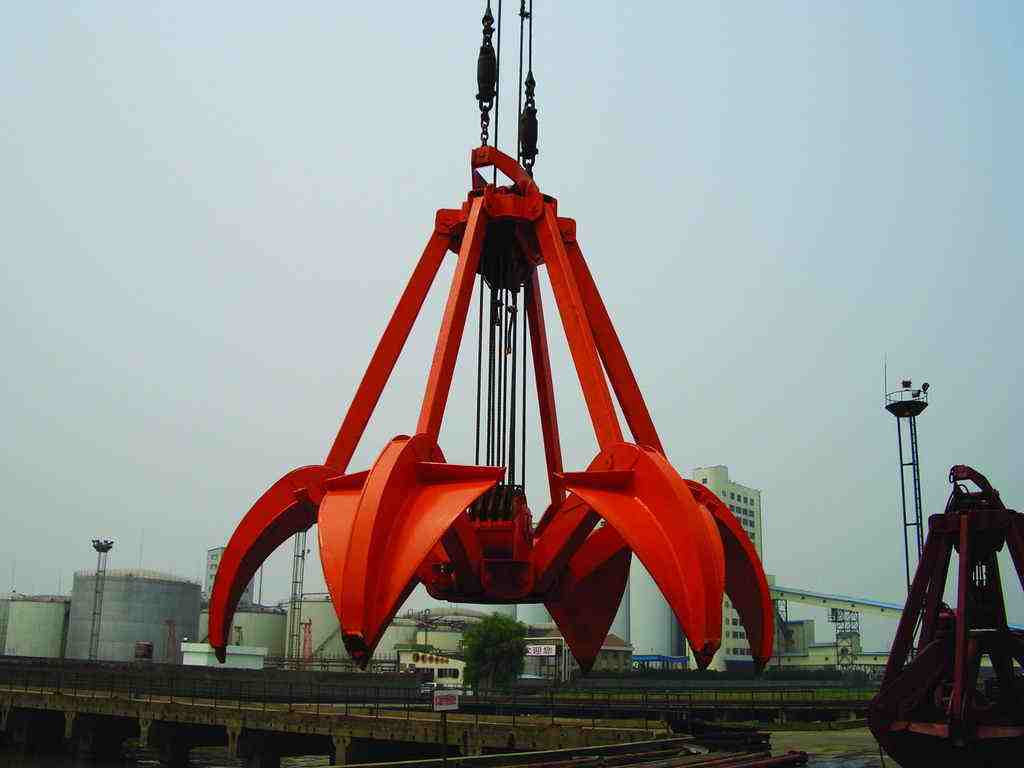

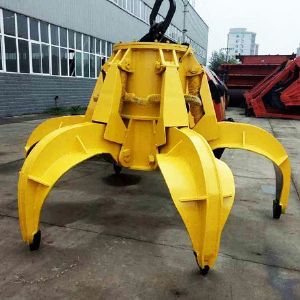

Electric Hydraulic Orange Peel Grab — Enhanced Product Description

Main Purpose

The primary purpose of the Electric Hydraulic Orange Peel Grab is to efficiently handle irregular, loose, and heavy bulk materials. This includes scrap metal, demolition waste, industrial slag, solid waste, ore, minerals, coal, and recycled steel.

Unlike conventional lifting equipment, the Electric Hydraulic Orange Peel Grab offers superior grabbing force and material containment, making it ideal for scrap steel grab operations, bulk material handling, and high-density cargo logistics.

It significantly improves handling efficiency, reduces manual labor, and ensures reliable and controlled gripping performance in rugged industrial environments.

---

Technical parameters

Model	Power		Weight	Lifting Capacity	Bucket Capacity	Maximum Working	Pressure Closing Time		Number of Bucket	Flaps Dimensions
	380V50Hz	440V60Hz					380V50Hz	440V60Hz		A	B	C	D
M15.0-350	15	18	1410	2.5	0.35	180	8	6.5	5	1840	1710	1330	2030
M15.0-500			1580	3.2	0.5	180	8	6.5	5	1980	1740	1460	2370
M15.0-630			1620	3.6	0.63	180	8	6.5	5	2040	1760	1520	2480
M22.0-800	22	26	2790	5.2	0.8	180	11	9	6	2420	2190	1720	2660
M22.0-1000			2960	6	1	180	11	9	6	2580	2240	1880	3010
M30.0-1250	30	35	3980	7.8	1.25	180	14	12	6	2840	2470	1960	3290
M30.0-1600			4270	9.1	1.6	180	14	12	6	2880	2490	2050	3380
M37.0-2000	37	44	5980	12.2	2	200	15	13	6	3320	2810	2320	3680
M37.0-2500			6170	13.8	2.5	200	15	13	6	3390	2870	2440	3880
M45.0-3200	45	54	8280	18	3.2	200	20	17	7	3540	3110	2580	4240
M45.0-4000			8630	20.7	4	200	20	17	7	3710	3170	2830	4600
M45.0-5000			9180	24.2	5	200	23	20	7	4080	3350	2980	4790
M45.0-6300			9610	28.6	6.3	200	23	20	7	4320	3530	3220	5170
M55.0-7000	55	66	10600	31.6	7	200	26	22	8	4620	3700	3480	5640
M55.0-8000			11020	35	8	200	26	22	8	4880	3930	3690	5880
M55.0-9000			11430	38.5	9	220	26	22	8	5060	4010	3860	6050
M55.0-10000			11780	41.8	10	220	26	22	8	5230	4180	4020	6210

---

Typical Application Scenarios

The Electric Hydraulic Orange Peel Grab is widely used across industries requiring high-capacity unloading and sorting of heavy or irregular bulk materials. Typical application environments include:

• Steel mills and recycling centers for scrap steel handling

• Ports and marine terminals for bulk cargo loading and unloading

• Waste-to-energy plants and municipal waste processing facilities

• Demolition and construction waste yards

• Foundries, mining operations, and slag handling systems

• Bulk cargo handling cranes and material logistics hubs

Whether installed on harbor cranes, gantry cranes, overhead cranes, or mobile loading equipment, the Electric Hydraulic Orange Peel Grab ensures consistent performance and high work efficiency.

---

Key Features & Benefits

• High Gripping Force & Durable Construction
  The heavy-duty hydraulic system provides strong clamping power, making the Electric Hydraulic Orange Peel Grab suitable for heavy scrap steel grab operations and dense bulk material handling.

• Efficient Multi-Petal Design
  The orange peel-style claws improve material penetration and gripping stability, ensuring maximum loading efficiency even with irregular or tangled materials.

• Continuous Duty Operation
  Engineered for long-term industrial use, the grab supports continuous high-frequency working cycles without performance loss.

• Low Maintenance, High Reliability
  The structure of the Electric Hydraulic Orange Peel Grab is optimized for long service life, reduced wear, and ease of maintenance.

• Flexible Compatibility
  Compatible with different crane types, including harbor cranes, overhead cranes, tower cranes, and mobile handling systems.

• Enhanced Safety and Productivity
  Stable hydraulic drive offers precise control, preventing spills, accidental drops, and efficiency loss during loading or unloading.
