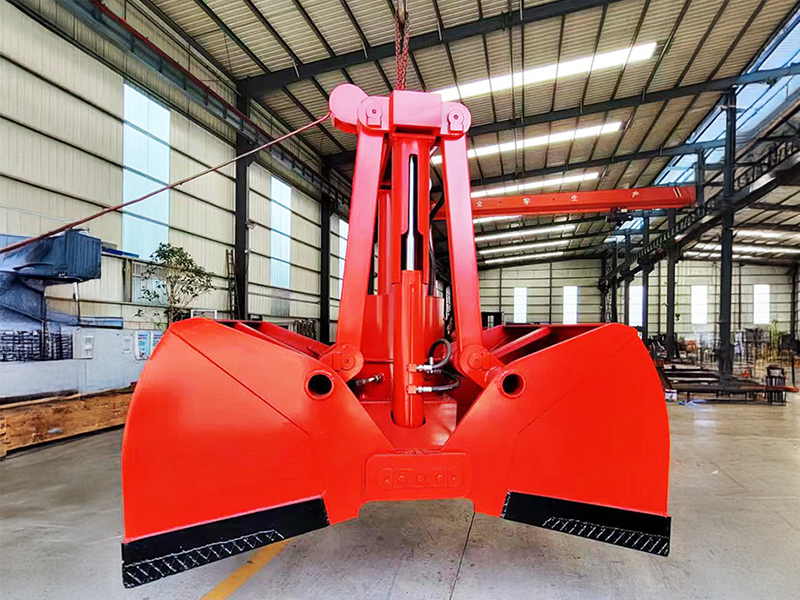

Electric Hydraulic Clamshell Grab — Enhanced Product Description

Main Purpose

The primary purpose of the Electric Hydraulic Clamshell Grab is to safely and efficiently handle loose materials with precise volume control. This bulk cargo grab is designed for applications requiring repeated opening and closing cycles, controlled dumping accuracy, and high operational stability.

Whether operating with cranes, automated loading systems, or port terminals, the Electric Hydraulic Clamshell Grab ensures smooth handling performance, making it an ideal electric grab bucket for bulk material transfer, storage, and screening systems.

---

Technical parameters

Model	Power		Weight	Total Lifting Capacity	Bucket Capacity	Maximum Working	Pressure Closing Time		External dimensions
	380V50Hz	440V60Hz					380V50Hz	440V60Hz	A	B	C	D	E
M15.0-3000	15	18	2870	5.3	3	180	11	9	2650	2440	2020	2750	2300
M15.0-4000			3020	6.3	4	180	13	11	2800	2570	2140	2880	2300
M18.5-5000	18.5	22	3670	7.7	5	180	13	11	2980	2740	2300	3080	2500
M18.5-6000			3980	8.8	6	180	18	15	3100	2780	2470	3260	2500
M22.0-7000	22	26	4720	10.4	7	180	18	15	3190	2880	2540	3340	2700
M22.0-8000			5460	11.9	8	200	18	15	3660	3030	2620	3460	2900
M30.0-9000	30	35	6740	14	9	200	18	15	3660	3260	2760	3710	2940
M30.0-10000			7120	15.2	10	200	18	15	3720	3260	2760	3710	3200
M30.0-11000			7520	16.4	11	200	18	15	3920	3280	2860	3890	3200
M37.0-12000	37	44	9060	18.7	12	200	19	16	4030	3590	2960	3910	3500
M37.0-13000			9560	20	13	200	19	16	4090	3620	3050	4010	3500
M37.0-14000			10060	21.3	14	200	19	16	4190	3640	3120	4180	3500
M45.0-15000	45	54	11080	23.1	15	220	19	16	4370	3720	3220	4220	3800
M45.0-16000			11680	24.5	16	220	19	16	4470	4050	3310	4240	3800
M45.0-18000			12820	27.2	18	220	19	16	4600	4120	3400	4390	4000
M55.0-20000	55	66	15980	32	20	220	21	19	4850	4190	3480	4670	4000
M55.0-23000			16860	.35.3	23	220	21	19	4850	4430	3590	4860	4150
M55.0-25000			17780	37.8	25	220	21	19	4850	4430	3590	4830	4500

---

Typical Application Scenarios

The Electric Hydraulic Clamshell Grab is widely used in industries where bulk material handling forms a critical part of the workflow. Typical applications include:

• Port and marine terminals for ship unloading and cargo handling

• Grain storage facilities and agricultural logistics operations

• Coal yards, cement production plants, and mineral processing sites

• Biomass and fertilizer supply chains requiring precise dosing

• Bulk cargo conveyor systems and industrial loading stations

• Steel mills, power plants, and bulk material storage warehouses

Due to its stable operation and precise control, the Electric Hydraulic Clamshell Grab is suitable for both manual operation and automated crane systems, ensuring consistent product movement and optimized loading efficiency.

---

Key Features & Performance Advantages

• Precision Hydraulic Control System
  Equipped with a reliable hydraulic drive, the Electric Hydraulic Clamshell Grab provides strong gripping force and smooth opening/closing performance for all types of loose materials.

• High-Efficiency Bulk Material Handling
  The optimized clamshell structure improves filling efficiency, making it ideal for high-volume loading cycles and continuous material flow environments.

• Robust and Durable Construction
  Manufactured from wear-resistant steel, this hydraulic clamshell grab offers long service life, reduced maintenance needs, and stable performance in demanding environments.

• Enhanced Sealing and Low Leakage Design
  The structure minimizes material loss during transfer, making it suitable for fine and powder-type materials such as grain, sand, cement, or ash.

• Compatible With Multiple Crane Types
  Can be mounted on gantry cranes, overhead cranes, port cranes, mobile cranes, and automated grab systems.

• Safe and Reliable Operation
  The intelligent control system ensures consistent working cycles, reduced spillage, and improved productivity in industrial and port logistics operations.
