Product Description

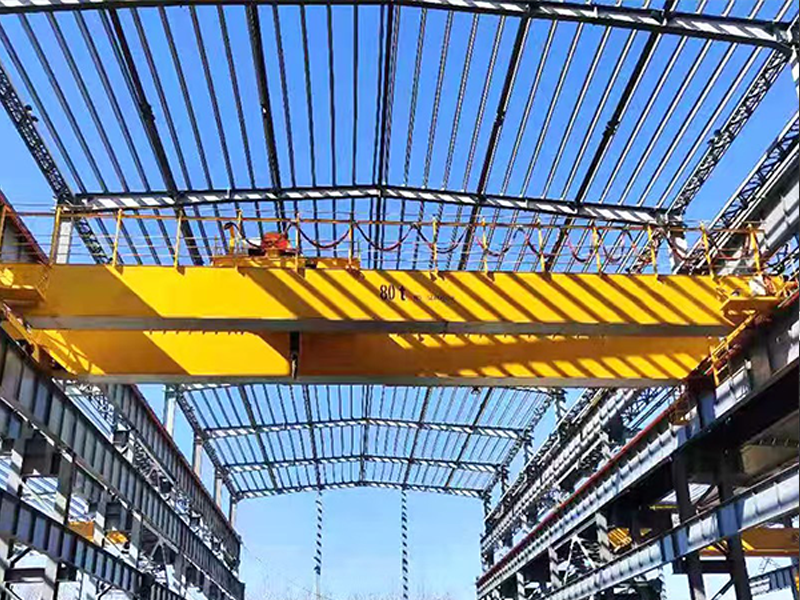

Our 15-ton overhead crane represents the pinnacle of superior engineering, designed to meet the rigorous demands of modern industry through strict adherence to international design and manufacturing standards including ISO 9001:2015 for quality management and CMAA Specification #70 for crane design. The crane's primary structure is fabricated from high-quality Q345B steel, selected for its exceptional strength (tensile strength 490-630 MPa for Q345B) and rigidity, ensuring minimal deflection and maximum structural integrity under full load. The main girders are meticulously fabricated using advanced automatic submerged arc welding and CNC plasma cutting techniques, followed by comprehensive non-destructive testing (NDT), including ultrasonic and magnetic particle inspection, to guarantee weld integrity and create a robust and durable frame engineered for an extended service life.

Key Design Features:

• Structural Integrity: The main girder and end carriages are constructed from high-strength structural steel (e.g., Q345B or ASTM A572 Grade 50), providing a solid and stable foundation for all lifting operations. All welding processes conform to international standards such as AWS D1.1 or EN ISO 3834-2, executed by certified welders. The steel surfaces undergo shot blasting to Sa2.5 standard before a multi-layer epoxy paint system is applied, providing superior corrosion resistance and a durable finish. The design can be either a cost-effective single girder for general use or a more robust double girder for higher duty cycles (CMAA Class C/D) and greater hook height, offering enhanced stability and reduced wheel loads for demanding tasks.

• Hoisting Mechanism: The crane is equipped with a high-performance electric hoist, typically a European-style wire rope hoist (e.g., from ABM, SEW-Eurodrive, or similar reputable brands) conforming to DIN or ISO standards. This hoist offers exceptionally smooth, reliable, and precise lifting due to its advanced components: a squirrel cage motor with IP55 protection and integrated thermal sensors, a precision-machined helical gearbox with hardened gears operating in an oil bath for quiet and efficient power transmission, and a fail-safe electromagnetic disc brake system with asbestos-free linings that automatically engages upon power failure for secure load holding. The wire rope is high-strength, galvanized steel with a 6x37 construction, providing a minimum safety factor of 5:1, and is subject to rigorous inspection and discard criteria as per ISO 4309:2017.

• Control Systems: Advanced control options are available to maximize operational flexibility and safety. These include an ergonomic pendant control with an IP65 rating for dust and water resistance, an industrial-grade wireless remote control utilizing frequency hopping technology for interference-free operation, and an optional enclosed cabin control for optimal operator visibility and comfort. Variable Frequency Drives (VFDs) from leading brands like Schneider, Siemens, or ABB are integrated for all crane motions (bridge, trolley, and hoist). This ensures smooth start-ups and stops, stepless speed adjustment for precise positioning (accuracy within ±2mm), reduced mechanical shock on components, and significant energy savings (up to 30%) by optimizing motor speed to load requirements. Anti-sway technology can also be integrated for enhanced load stability.

• Safety Systems: Safety is paramount, with our 15-ton cranes equipped with a comprehensive suite of safety features that comply with international safety regulations (e.g., EN 13135, OSHA, and CMAA Specification #70). These include a highly accurate electronic load cell-based overload protection device with a digital display, ensuring the crane operates within its safe working limits. Redundant limit switches are installed for all movements (hoist upper/lower, bridge travel, trolley travel) to prevent over-travel. Advanced anti-collision systems (e.g., laser-based distance sensors or ultrasonic sensors) provide automatic deceleration and stopping. Easily accessible mushroom-head emergency stop buttons are strategically placed, immediately cutting off all power to the crane. All electrical components are housed in protective enclosures with a minimum IP54 rating, providing effective protection against dust ingress and splashing water, ensuring reliable operation in industrial environments. Additionally, phase failure protection, short-circuit protection, and robust grounding systems are standard.

Main Purpose

The primary purpose of the 15-ton overhead crane is to provide an unrivaled solution for safe, highly efficient, and consistently reliable lifting and transporting of heavy materials within a fixed operational area. It is specifically engineered to streamline complex workflows, significantly reduce the reliance on manual labor, and substantially enhance overall productivity in industrial environments where the precise and controlled movement of heavy loads (up to 15 metric tons) is a critical and frequent requirement. By offering exceptionally precise control through its integrated VFDs and robust, fail-safe braking systems, the crane facilitates the meticulous handling of valuable and sensitive equipment, raw materials, and finished products. This capability directly minimizes the risk of damage to goods, optimizes operational throughput, and elevates overall workplace safety standards to international benchmarks.

Technical Parameters

Below is a comprehensive table of technical parameters for our standard 15-ton overhead crane models. Please note that all parameters can be customized to meet specific client requirements and local regulations.

Typical Applications

Our 15-ton overhead cranes are versatile and can be adapted for a wide range of industrial applications, including:

• Heavy Machinery Manufacturing: For lifting and positioning large components, engines, and machine tools.

• Steel Warehouses: For handling steel coils, plates, and structural sections.

• Power Plants: For maintenance of turbines, generators, and other heavy equipment.

• Automotive Industry: For moving heavy dies, molds, and vehicle chassis.

• Precast Concrete Yards: For handling large concrete beams, panels, and pipes.

• Shipbuilding: For assembling ship sections and moving heavy components.

• Paper Mills: For handling large paper rolls and machinery maintenance.

• General Manufacturing: For a wide variety of lifting and material handling tasks in large workshops and factories.
