Overhead Crane

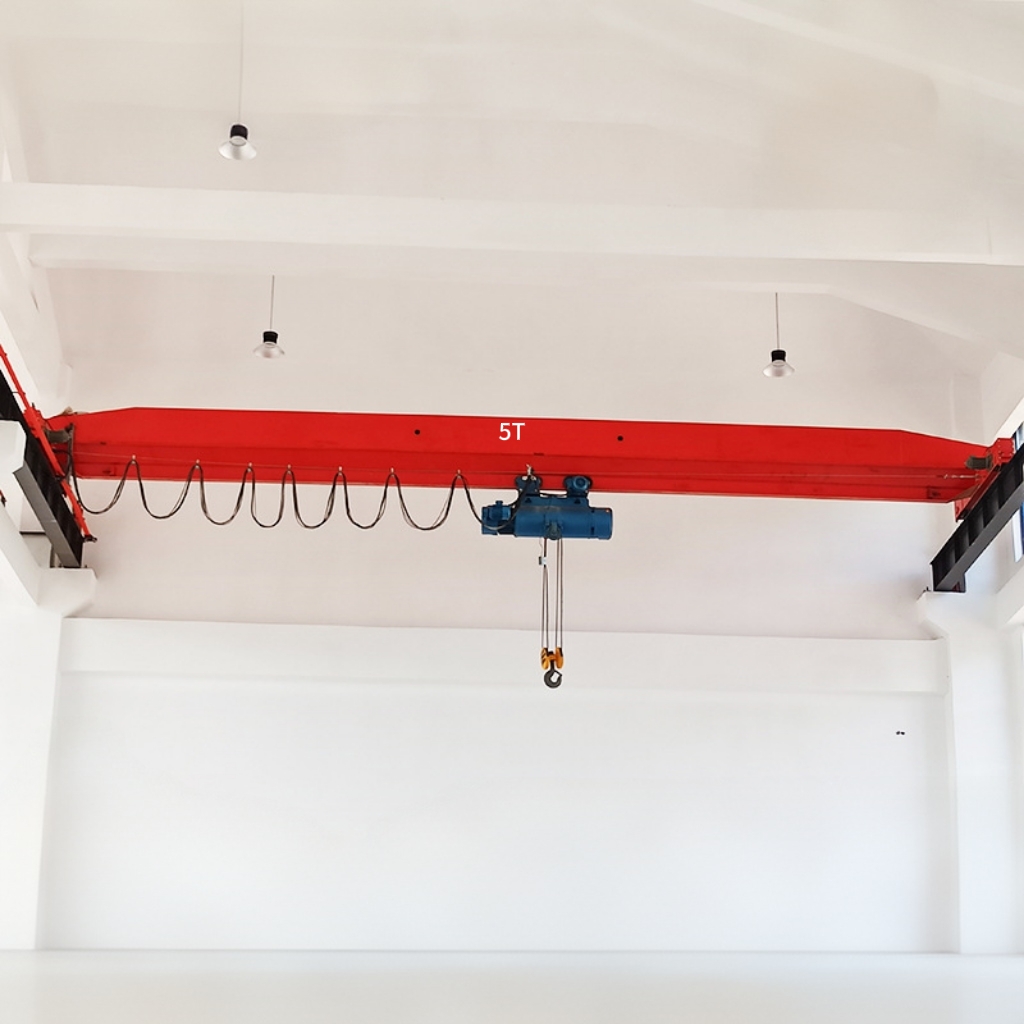

5 ton Overhead Crane
Product Description
5 ton Overhead Crane — Enhanced Product Description
Our 5-ton overhead cranes are available in various configurations to suit specific operational requirements. Below are the typical technical specifications for our standard models. Customization options are available upon request to perfectly match your facility's needs.
Parameter | Specification | Remarks |
Lifting Capacity | 5 tons (5000 kg) | Available in single or double girder configurations |
Span | 7.5m - 30m | Customizable to fit workshop dimensions |
Lifting Height | 6m - 18m | Adjustable based on building height and application |
Working Class (Duty Class) | A3 - A5 (FEM 1Am - 2m) | Suitable for light to medium-duty operations |
Lifting Speed | 0.8/5.0 m/min or 0.7/4.7 m/min | Dual-speed or variable frequency drive (VFD) for stepless control |
Trolley Travel Speed | 2-20 m/min | VFD for smooth acceleration and deceleration |
Crane Travel Speed | 3-30 m/min | VFD for precise positioning |
Power Supply | 380V/3Phase/50Hz | Customizable to local electrical standards (e.g., 480V/60Hz/3Ph) |
Control Method | Ground pendant, wireless remote control, or cabin control | Optional, based on operational preference and safety requirements |
Ambient Temperature Range | -20°C to +40°C | Standard operating environment |
Protection Class | IP54 | For electrical components, ensuring dust and splash protection |
Insulation Class | F | Motor insulation grade for enhanced durability |
Product Description
Our 5-ton overhead cranes are engineered with a commitment to quality, performance, and safety. Designed for optimal space utilization and operational efficiency, these cranes are a cornerstone for modern industrial material handling.
Design and Construction:
Lifting-Tools' 5-ton overhead cranes feature robust steel structures, available in both single and double girder designs. The main girders are fabricated from high-strength structural steel, precisely cut and welded using advanced techniques to ensure structural integrity and longevity. All steel components undergo thorough surface preparation, including shot blasting, followed by a multi-layer painting system for superior corrosion resistance and aesthetic finish. The compact design minimizes dead weight and wheel loads, reducing stress on building structures and allowing for greater hook height within existing facilities.
Key Components:
At the heart of our 5-ton overhead crane is a high-performance electric hoist, typically a wire rope hoist, known for its reliability and smooth operation. The hoist is equipped with a durable motor, precision gearbox, and an electromagnetic brake system for safe and accurate load control. The trolley and end carriages are designed for smooth travel along the bridge and runways, powered by energy-efficient motors with variable frequency drives (VFDs) for precise speed control and reduced wear and tear. Safety features include overload limiters, upper and lower limit switches, and emergency stop buttons, ensuring maximum operational safety.
Versatile Applications:
The versatility of our 5-ton overhead cranes makes them suitable for a broad spectrum of industries and applications, including:
• General Manufacturing: For lifting and moving components, machinery, and finished products.
• Automotive Industry: Supporting assembly lines and maintenance operations.
• Warehousing and Logistics: Efficient handling of goods for storage and distribution.
• Workshops and Maintenance Bays: Providing essential lifting capabilities for repairs and installations.
• Light Fabrication: Moving steel plates, beams, and other materials during fabrication processes.
Key Features & Advantages
1 Optimized Design: Compact structure, low headroom, and reduced wheel loads maximize usable workspace and minimize building construction costs.
2 High Efficiency & Energy Saving: Equipped with advanced electric hoists and VFD-controlled motors, ensuring smooth, precise, and energy-efficient operation, leading to lower power consumption.
3 Enhanced Safety Features: Comprehensive safety mechanisms including overload protection, limit switches, emergency stop, and anti-collision devices provide maximum operational security for personnel and equipment.
4 Durable & Low Maintenance: Constructed with high-quality, wear-resistant components and designed for easy access for maintenance, ensuring a long service life and reduced downtime.
5 Precise Load Positioning: Variable frequency control allows for stepless speed adjustment, enabling extremely accurate and gentle placement of loads, crucial for delicate operations.
6 Flexible Control Options: Offers multiple control modes—ground pendant, wireless remote, or optional cabin control—to suit various operational environments and user preferences.
Why Choose Lifting-Tools
At Lifting-Tools, we are committed to providing superior lifting solutions that drive efficiency and safety in your operations. Here’s why partnering with us is the right choice:
• Expertise and Experience: With years of specialized experience in overhead crane manufacturing and installation, we possess the knowledge to deliver optimal solutions for your unique challenges.
• Uncompromising Quality: We adhere to stringent quality control standards throughout the manufacturing process, from material selection to final testing, ensuring every 5-ton overhead crane meets international benchmarks for performance and durability.
• Customized Solutions: Our engineering team works closely with clients to understand their specific requirements, offering tailored crane designs and configurations that perfectly integrate with their facilities and operational needs.
• Comprehensive Support: We provide end-to-end services, including expert consultation, professional installation, operator training, and responsive after-sales support, ensuring seamless operation and peace of mind.
• Competitive Value: By combining innovative design with efficient production, we offer high-quality 5-ton overhead cranes at competitive prices, providing excellent value and a strong return on your investment.
